Hardware Security Modules

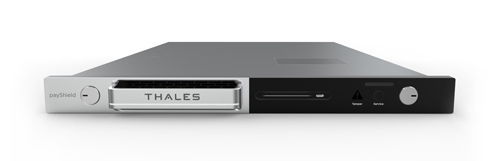

Designed specifically for payment applications — Thales Payment HSMs (payShield 10k) are proven solutions that deliver capabilities for issuing credentials, processing transactions and managing keys. Thales Payment HSMs and management tools provide flexible, efficient transaction security for retail payment processing environments, internet payment applications, and web-based PIN delivery. Ensuring the security of consumer data is essential to the integrity of intra-bank network payments, ACH transfers, check clearing, mobile payments, and credit card transactions. In addition to meeting today’s government and industry regulations and standards, Thales Payment HSM solutions are designed to anticipate tomorrow’s


  • Leverage Proven Integrations

    Our payment HSMs are the most widely deployed in the world and are supported by the largest number of payment application providers

  • Simplify deployment

    Our payment HSMs are capable of being securely configured, managed and monitored remotely from locations of convenience to reduce your costs and simplify your ongoing operations

  • Maximize Resilience

    Equipped with dual hot-swappable power supplies and fans, our latest HSMs significantly increase the mean time between failure (MTBF) and simplify field maintenance


  • Cryptographic Algorithms
    • DES and Triple-DES key lengths 112 & 168 bit
    • AES key lengths 128 bit, 192 bit & 256 bit
    • RSA (up to 4096 bits)
    • ECC as defined in FIPS 186-3 (P-256, P-384 & P-521)
    • HMAC, MD5, SHA-1, SHA-2, SHA-224, SHA-256, SHA-384 & SHA-512
  • Financial Services Standards
    • ISO: 9564, 10118, 11568, 13491, 16609
    • ISO: 9564, 10118, 11568, 13491, 16609
    • ANSI: X3.92, X9.8, X9.9, X9.17, X9.19, X9.24, X9.31, X9.52, X9.97
    • ASC X9 TR-31, X9 TG-3/TR-39
    • APACS 40 & 70
  • Host Connectivity
    • TCP/IP & UDP (1Gbps or 10Gbps) – dual ports
    • Secure Host Communications Management option for TLS authenticated sessions on Ethernet host port
  • Security Certifications
    • FIPS 140-2 Level 3 (security sub-system)
    • PCI HSM v3 (selected software versions) including RAP
    • PCI HSM v3 KLD (for payShield TMD)
    • AusPayNet approved

If you have any further questions or inquiry related to payment security, transaction protection, card processing protection or other please contact us at (021) 255 25100 or submit your needs here
